JBL EON E612 E615 Replacement Amplifier Module - Compatible with Powered Speakers - Perfect for DJs, Live Performances & Studio Sound Systems

Product Description

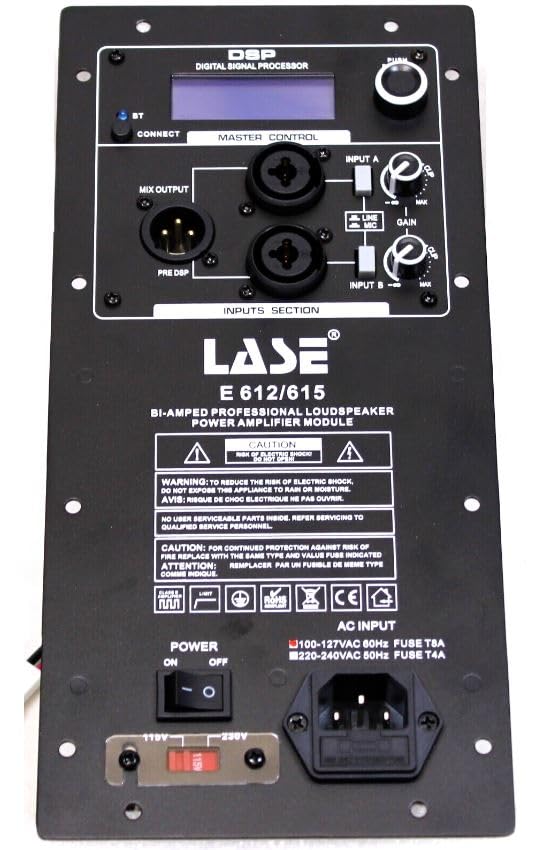

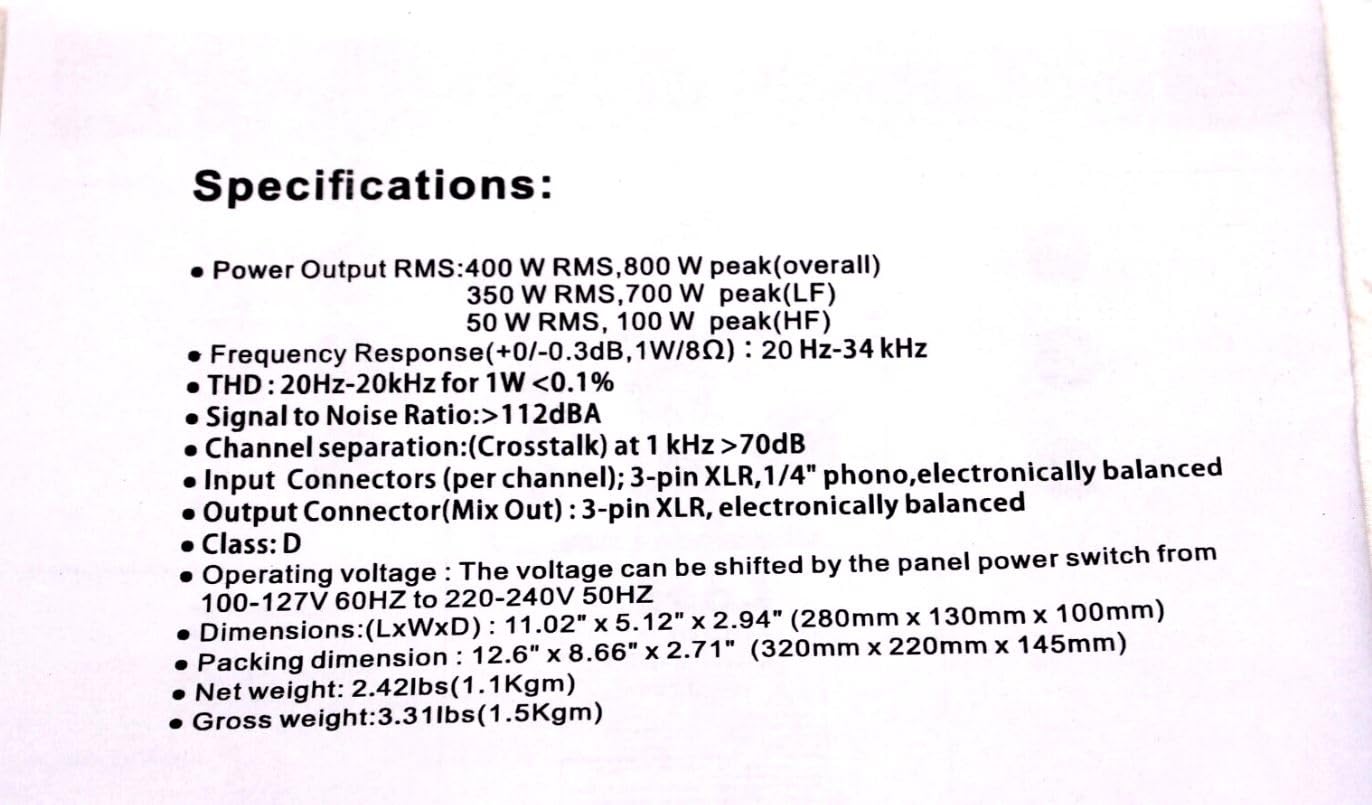

Very Easy To Install. The LASE E612/ E615 control panel is simple and neatly laid out, with the user controls being restricted to power, a rotary level control, and a pair of push switches for selecting 'EQ' Boost/Flat settings or Line/ Mic sensitivity. There are two XLR connectors, one for signal input and one for link out, so that additional speakers or systems can be daisy‑chained. The input socket is one of those handy 'combi' types, and will accept either a three‑pin XLR or a standard jack plug (balanced or unbalanced). Input Connector (per channel):3-pin XLR,1/4" phono, electronically balanced. Output Connector: Balanced Male 3-pin XLR " Mix Out". Class :D Operating voltage : The voltage can be shifted by the panel power switch from 100-127V 60 Hz to 220-240V 50Hz Dimensions : (L×W×D) : 11.02" x 5.12" x 2.94" (280mm x 130mm x 100mm). Packing dimension : 12.6" x 8.66" x 2.71" (320mm x 220mm x 145mm) Net weight :2.42lbs (1.1Kgm) Gross weight :3.31lbs(1.5Kgm)
