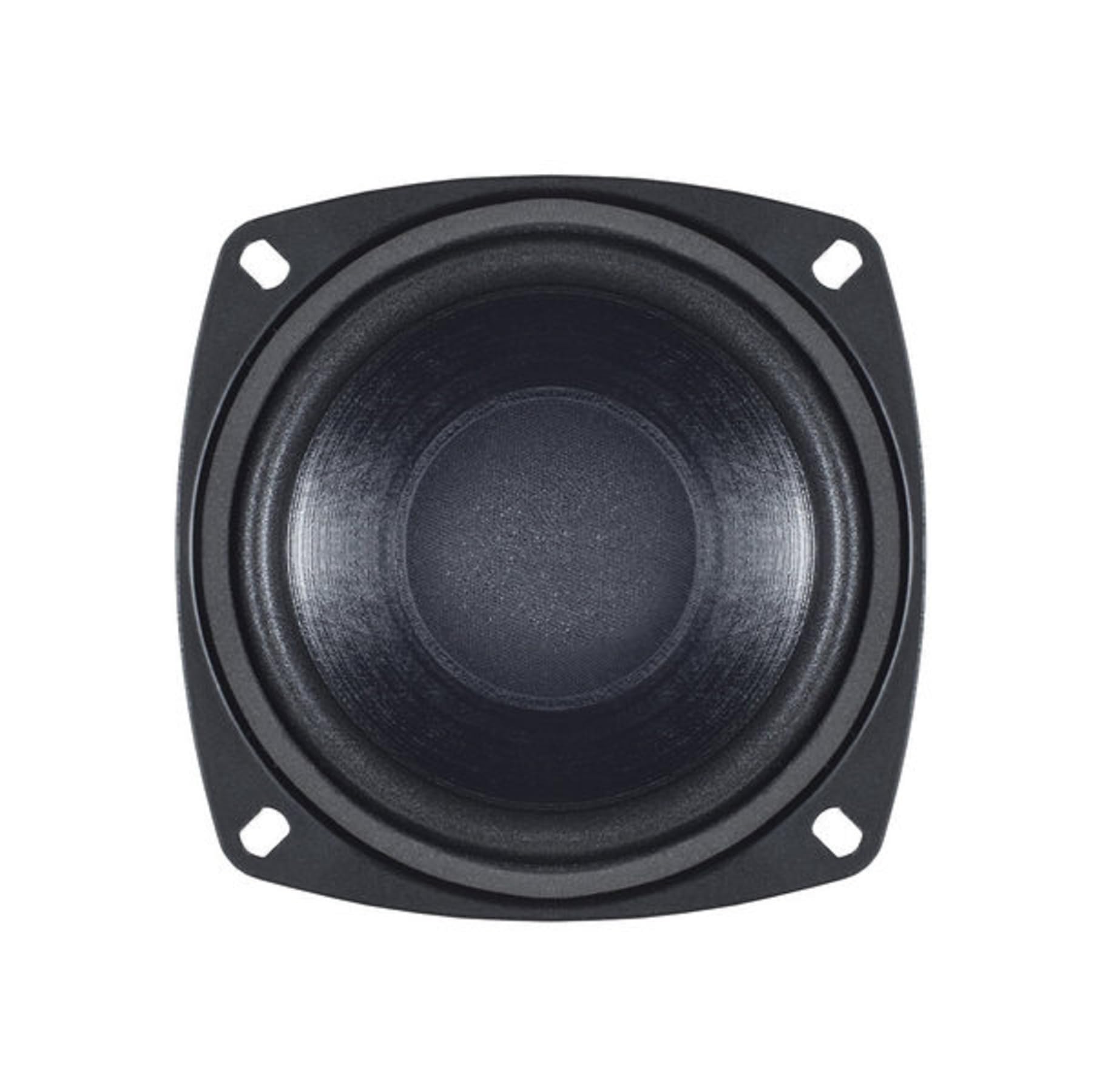

B&C 4"ND COAX

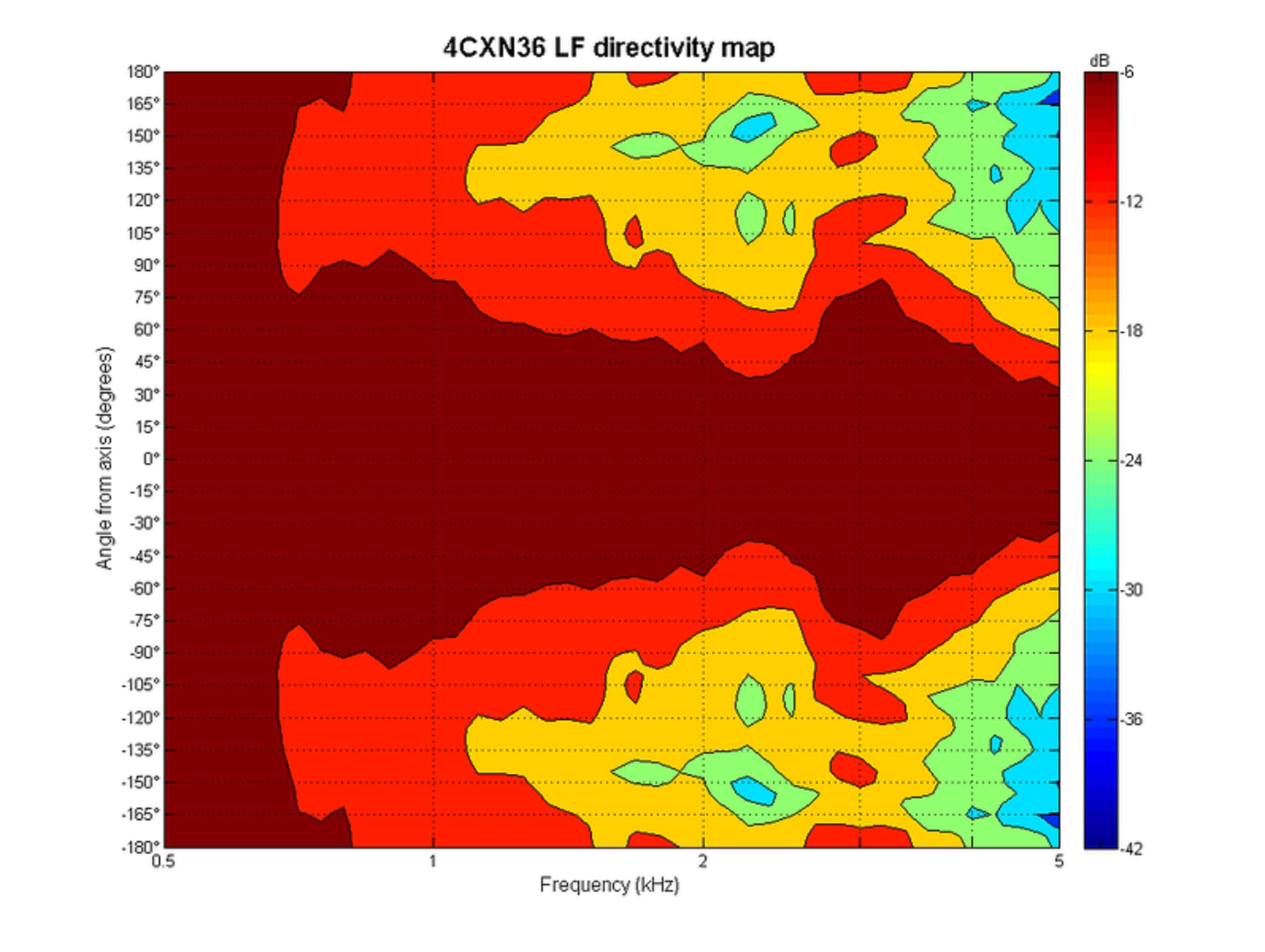

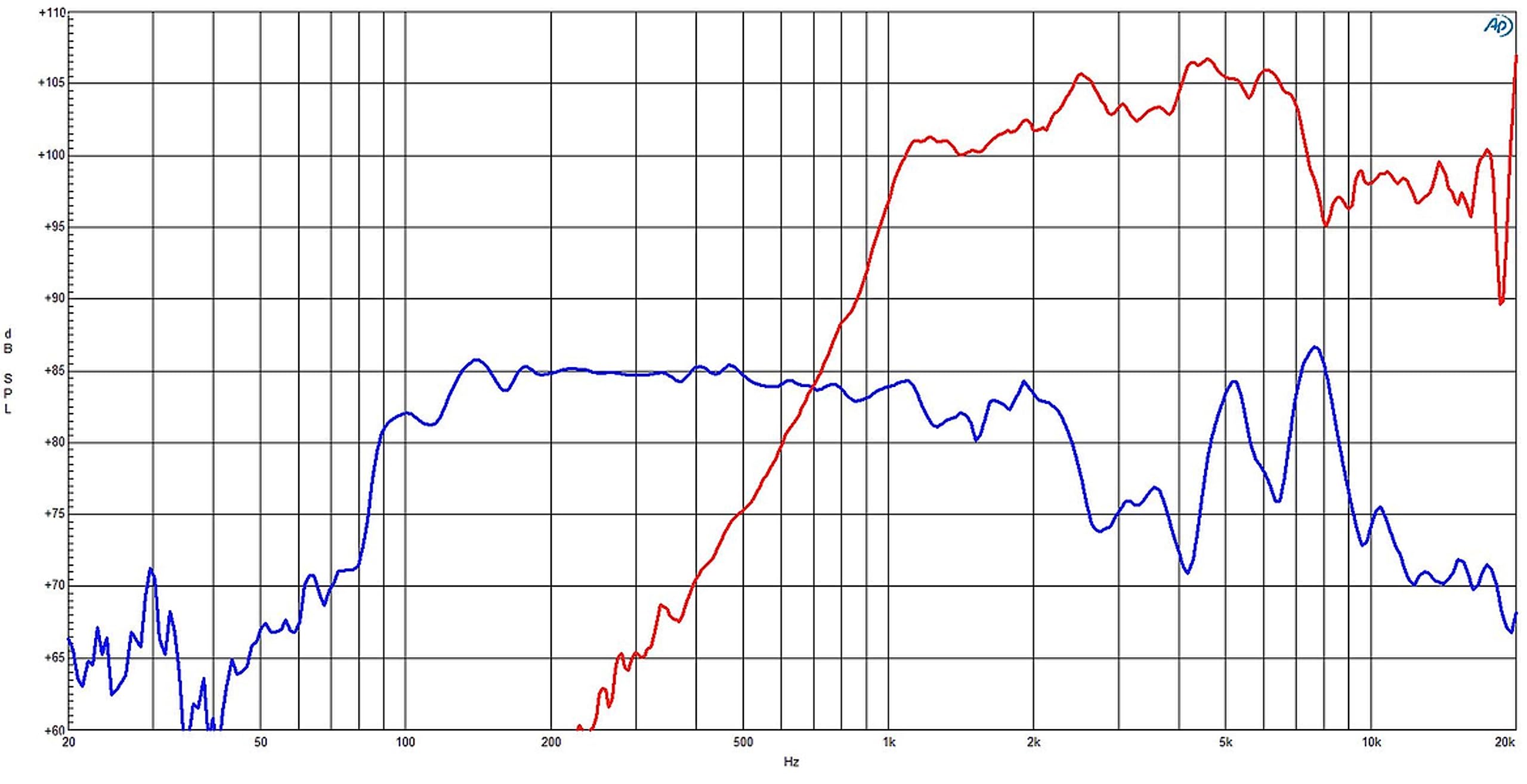

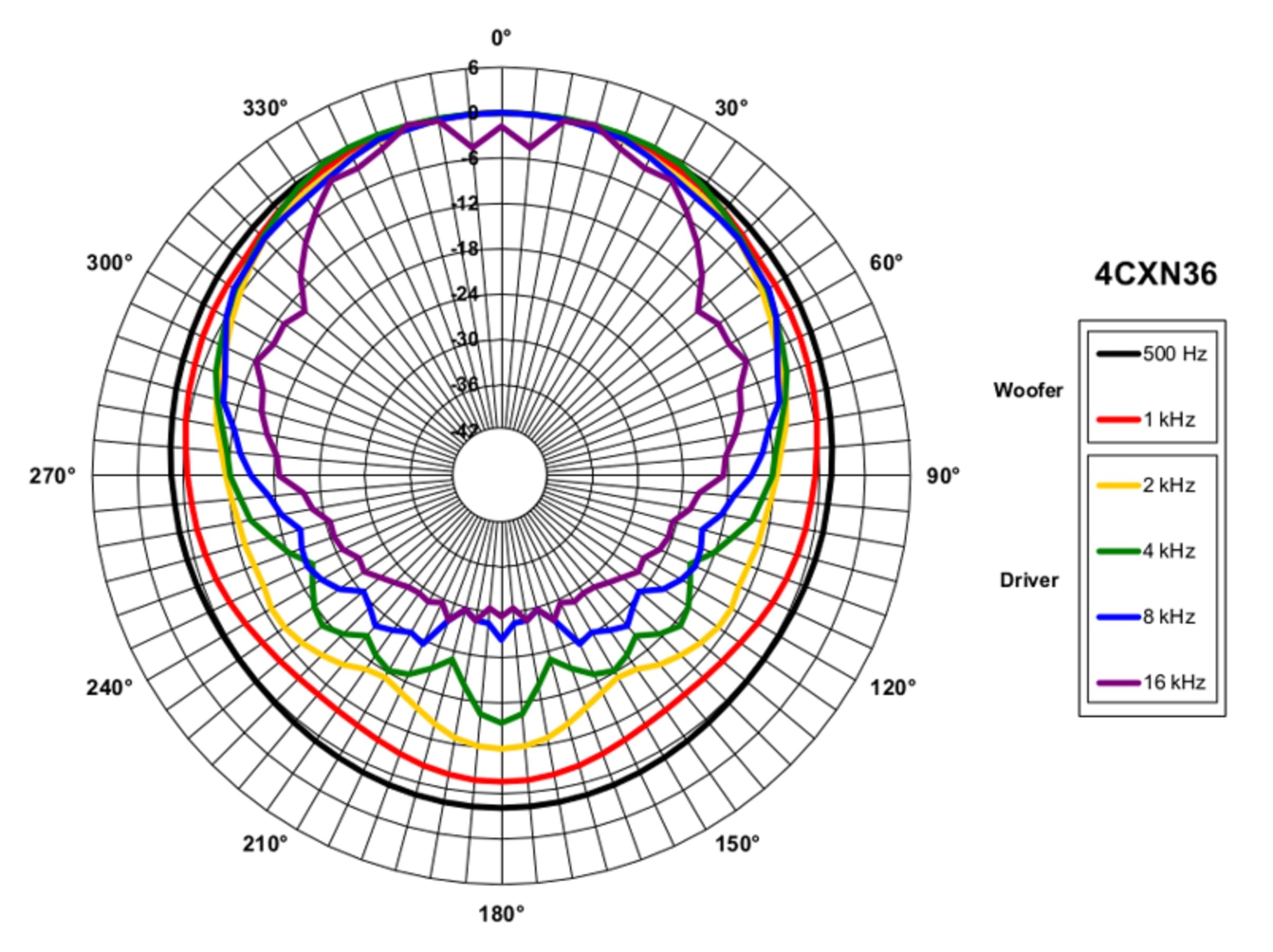

HIGHLIGHTS | 200 W continuous program power capacity | 70° nominal coverage | 110 - 18000 Hz response | 86 dB sensitivity | Neodymium magnet allows a very light yet powerful motor assembly | Aluminium demodulating ring allows a very low distortion figure"
SPECIFICATIONS || Nominal Diameter 100 mm (4.0 in) | Nominal Impedance 16 Ω | Minimum Impedance LF 12.0 Ω | Minimum Impedance HF 10.2 Ω | Frequency Range 110 - 18000 Hz | Dispersion Angle1 70 ° | Woofer Cone Treatment WP Waterproof Front Side | Magnet Material Neodymium Ring | "
MOUNTING AND SHIPPING INFO || Overall Diameter 127 mm (5.0 in) | Bolt Circle Diameter 114 mm (4.51 in) | Baffle Cutout Diameter 103 mm (4.06 in) | Depth 84 mm (3.31 in) | Flange and Gasket Thickness 3 mm (0.12 in) | Net Weight 0.54 kg (1.19 lb) | Shipping Units 1 | Shipping Weight 0.75 kg (1.65 lb) | Shipping Box 210x210x125 mm (8.27x8.27x4.92 in) | "
PARAMETERS || Resonance Frequency 110 Hz | Re 10.9 Ω | Qes 1.05 | Qms 12.1 | Qts 0.97 | Vas 1.6 dm3 (0.06 ft3) | Sd 56.0 cm2 (8.68 in2) | η₀ 0.19 % | Xmax ± 4.1 mm | Xvar ± 5.0 mm | Mms 5.8 g | Bl 6.43 Txm | Le 1.26 mH | EBP 104 Hz | "

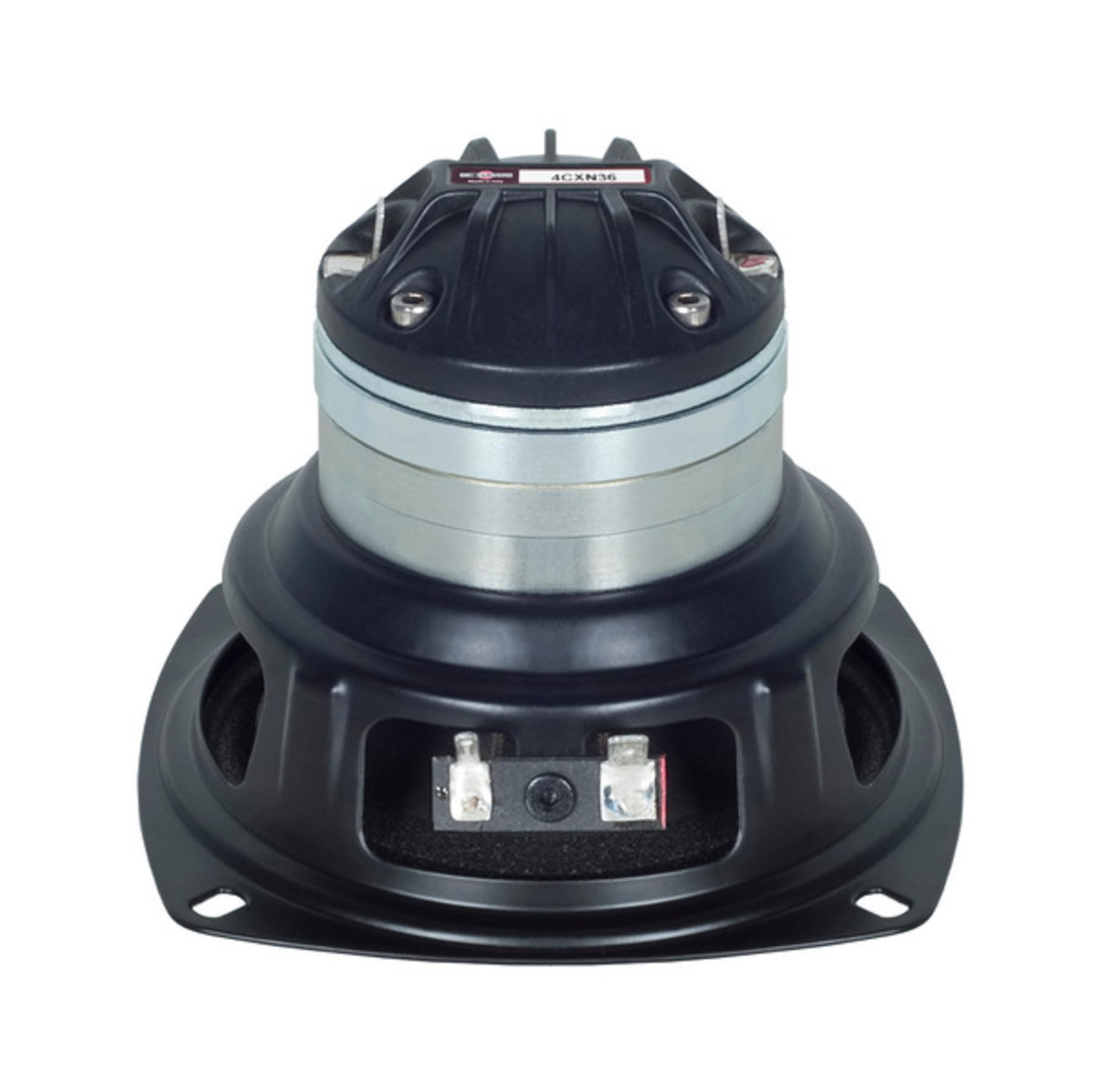

Unique to B&C, a complete lineup of high sensitivity and power handling 4”, 5" and 6.5" frame transducers. These high technology products are made with our famously critical quality control, allowing new compact loudspeaker designs with appropriately scaled performance. Combined with a 1.4” dome compression driver, our 4CXN36 coaxial is the most compact and cost effective full range transducer we have ever built, offering 110 - 18000Hz frequency response and a 70° conical coverage pattern.
